AstellBio 1 x 1 Batch Thermal EDS

This 1 x 1 Batch Thermal EDS has a sterilization tank for denaturing biological material and a holding tank for collecting wastewater.

Contact us now on +44 (0)20 8309 2031 to find out more, or via the contact page here.



Description

The addition of a holding tank allows the EDS to collect effluent while the sterilization tank is sealed and running. The EDS is perfectly equipped to handle momentary peaks in effluent flow; with effluent first filling the sterilization tank and then collecting in the holding tank. It is also capable of handling a constant flow with the time taken for the sterilization tank to process being faster than the time taken for the holding tank to fill.

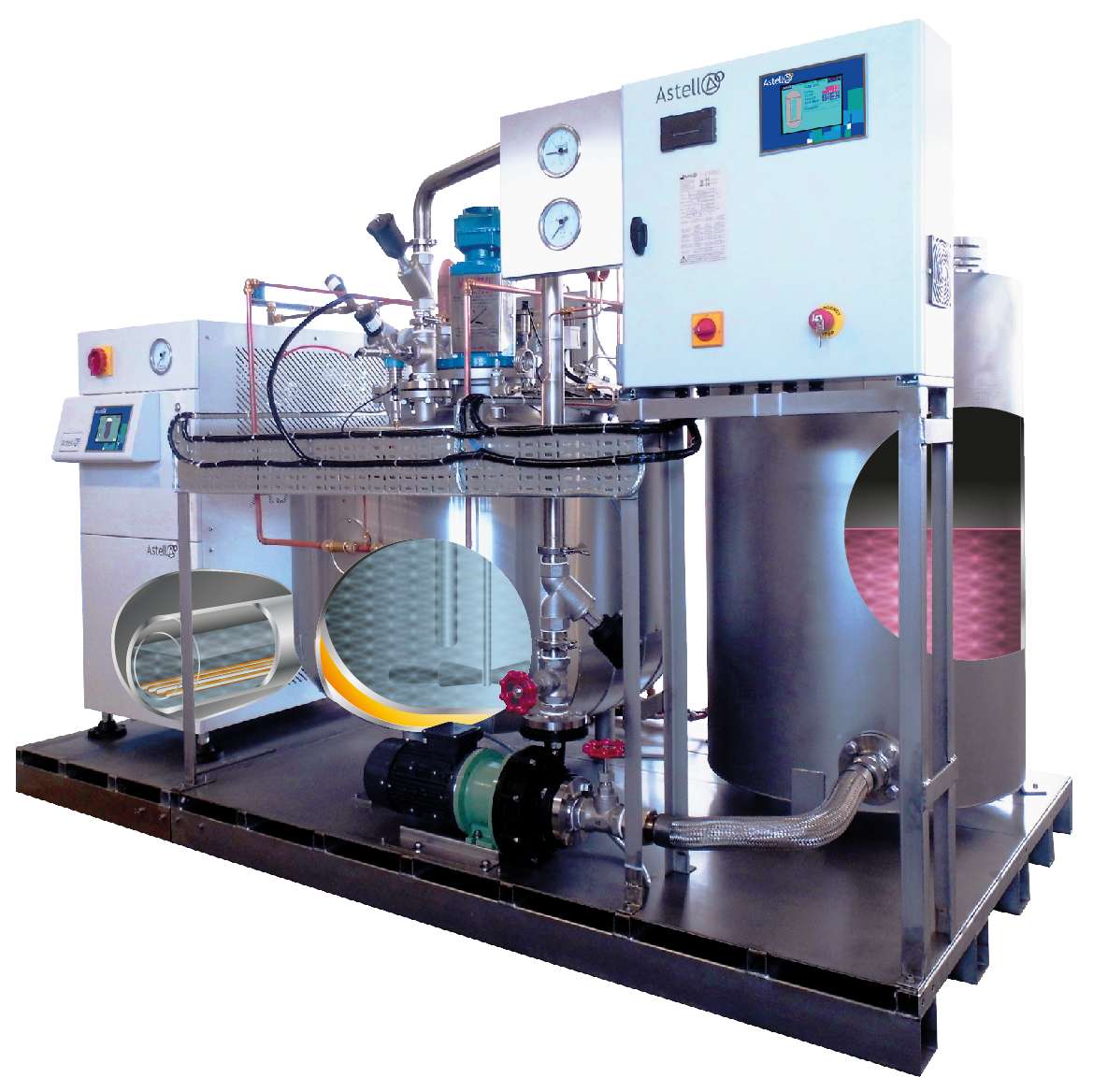

The model shown incorporates a 72kW Astell steam generator to provide the heat required to destroy pathogens. As such, the EDS only requires electricity, water, alongside plumbing into the wastewater system operate.

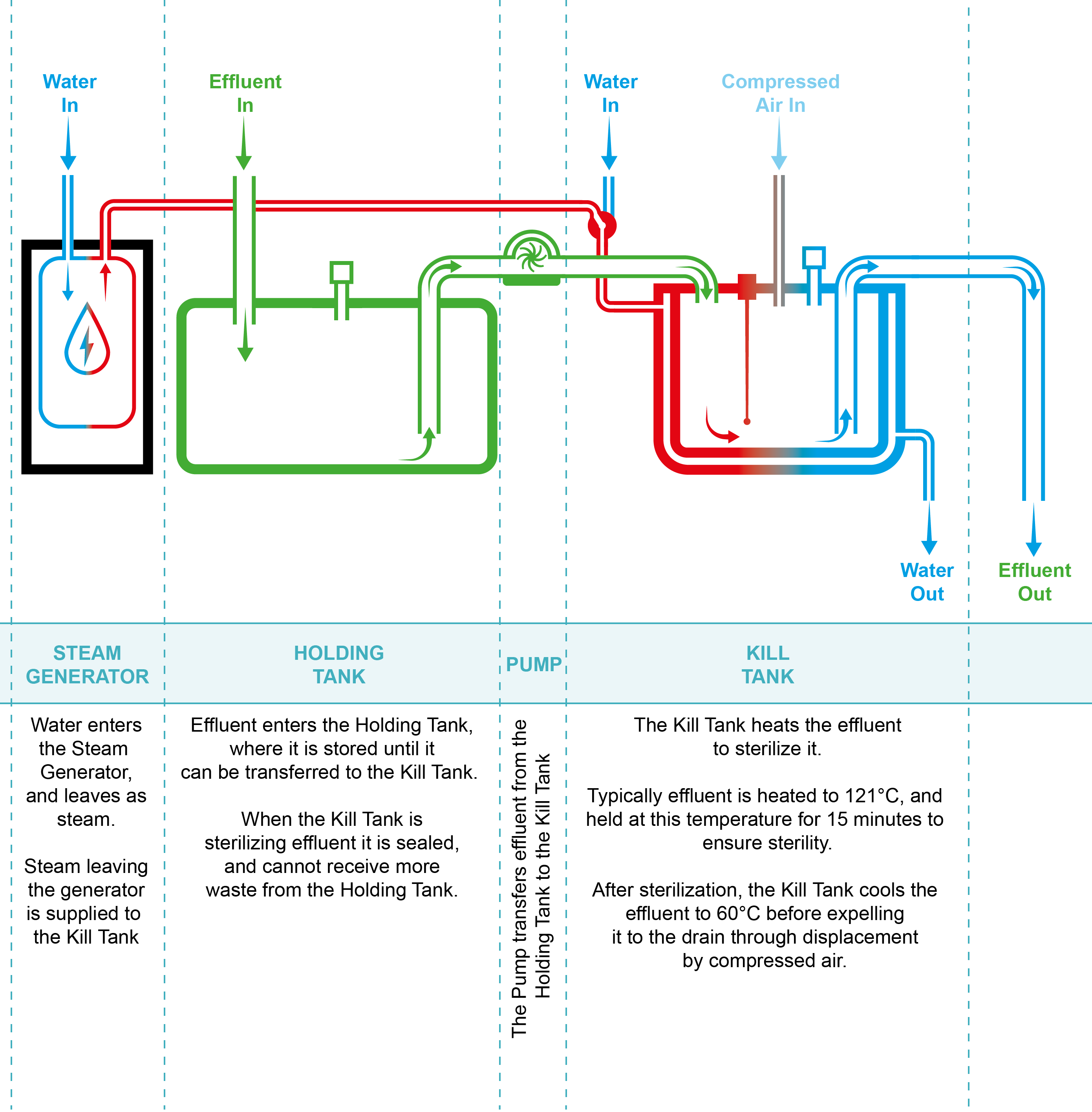

The diagram below shows how a thermal effluent decontamination system with one sterilization tank and one holding tank works:

AstellBio Batch Thermal EDS are custom built to order, based on the exact requirements of your facility's wastewater output. Contact AstellBio to discuss your EDS needs today.

Features
  • Sterilization tank agitation to help heating and cooling times and stop solids from settling
  • Colour touchscreen controllers showing permanent cycle status, pressures, temperatures, stage and cycle times, liquid levels
  • Data archive, all cycles stored in memory and can be downloaded via ethernet and or captured via a printer (optional extra)
  • Fully demountable for easy shipping and install
  • Double valving on effluent input to protect incoming source
  • Integral or external steam / heating supply
  • Inspection hatch
  • Jacket heating and cooling on the sterilization pressure vessels
  • Pumped systems use magnetically driven pumps to reduce the likelihood of leaks
  • Manual override ( password protected )
  • Radar level controlling – for accurate tank level monitoring
  • Stainless steel pipework to first valve pipework, or all stainless steel pipework
  • Steam sterilizable bacterial vent filters
  • Colour touchscreen control terminal(s)
  • USB interface for downloading controller data

Product Options

  • Agitation to provide better heat distribution and distribute solids
  • Automatic de-scaling system
  • Connection to a chilled water supply or a flow and return system
  • Double valving on all valves
  • Ethernet interface Ethernet interface
  • Exhaust Heat Exchange System (drain cooling) Exhaust Heat Exchange System (drain cooling)
  • Fully insulated sterilization pressure vessels
  • Higher grade vessel material
  • Holding Tank
  • Hygienic instrumentation, valves, gauges and transducers
  • Internal heating
  • Sampling point
  • Stainless steel frame
  • Steam generators
  • Valve position monitoring
